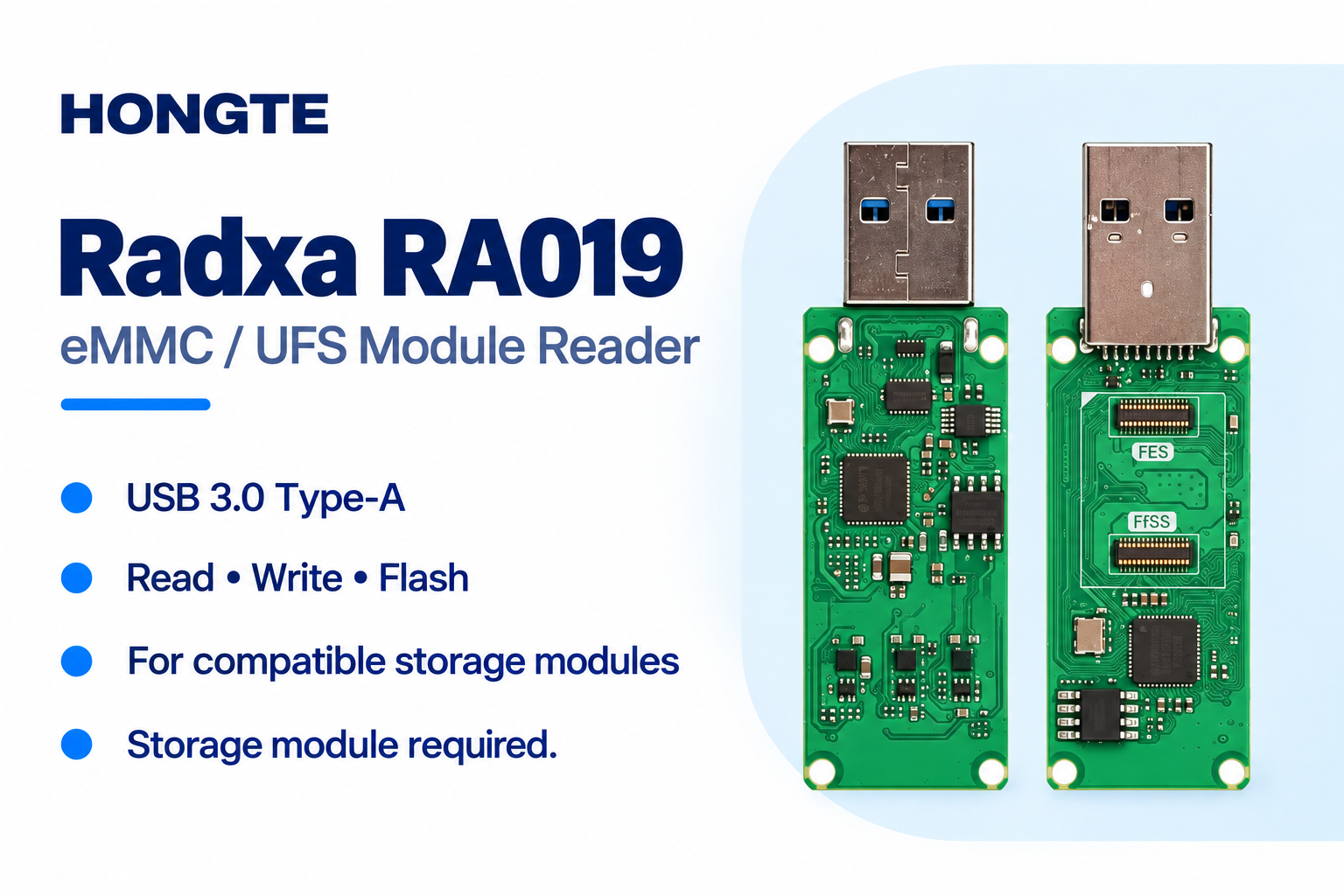

Radxa RA019 eMMC / UFS Module Reader

The Radxa RA019 is a USB 3.0 Type-A adapter for reading, writing and flashing compatible eMMC or UFS storage modules from a computer. It is useful for preparing operating-system images for supported Radxa single-board computers, backing up data and accessing removable module storage. A compatible storage module is required; the reader itself does not provide storage capacity.

Key features - USB 3.0 Type-A host connection, with a theoretical interface rate of up to 5 Gbps. Actual transfer speed depends on the module, USB host and workload. - UFS 2.1 / Gear 3 support, plus eMMC HS200 and HS400 modes. - USB bus-powered at 5 V. - Plug-and-play support for Windows, Linux and macOS. - Designed for compatible Radxa eMMC and UFS modules. Verify the exact connector and module revision before use.

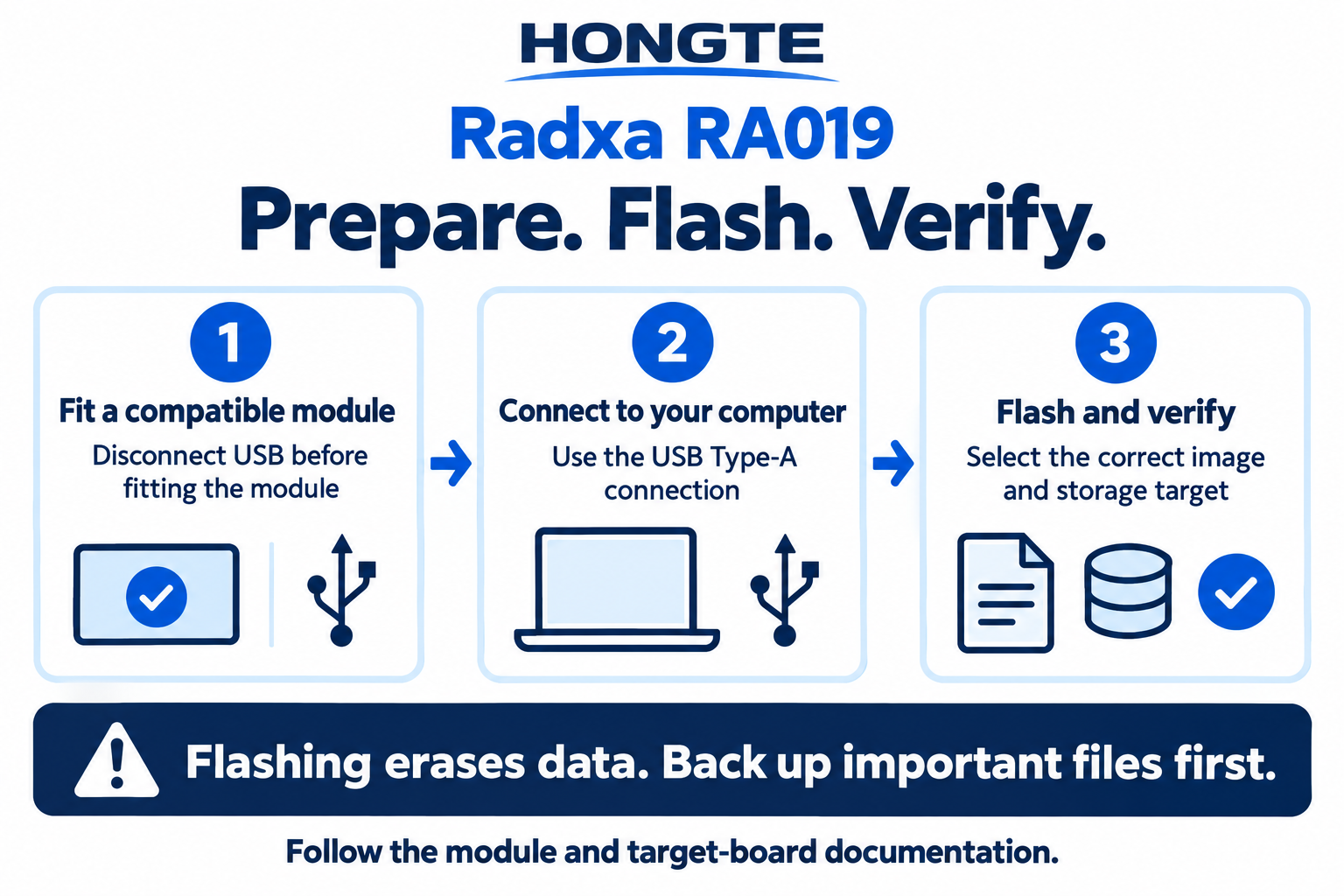

Using the reader Disconnect USB before fitting the module. Align the module's notch and connectors, then seat it according to Radxa's installation guide. Connect the reader to your computer and select the correct system image and storage target in a suitable flashing tool. Flashing erases existing data: back up important files first, and allow writing and verification to finish before disconnecting.

The board's two connectors secure one installed module; they should not be treated as two independent drive slots. Check the target board's boot instructions and confirm included accessories, current stock and delivery with HONGTE before ordering.
